Professiona ODM ibr metal sheet roof panel roll forming machine

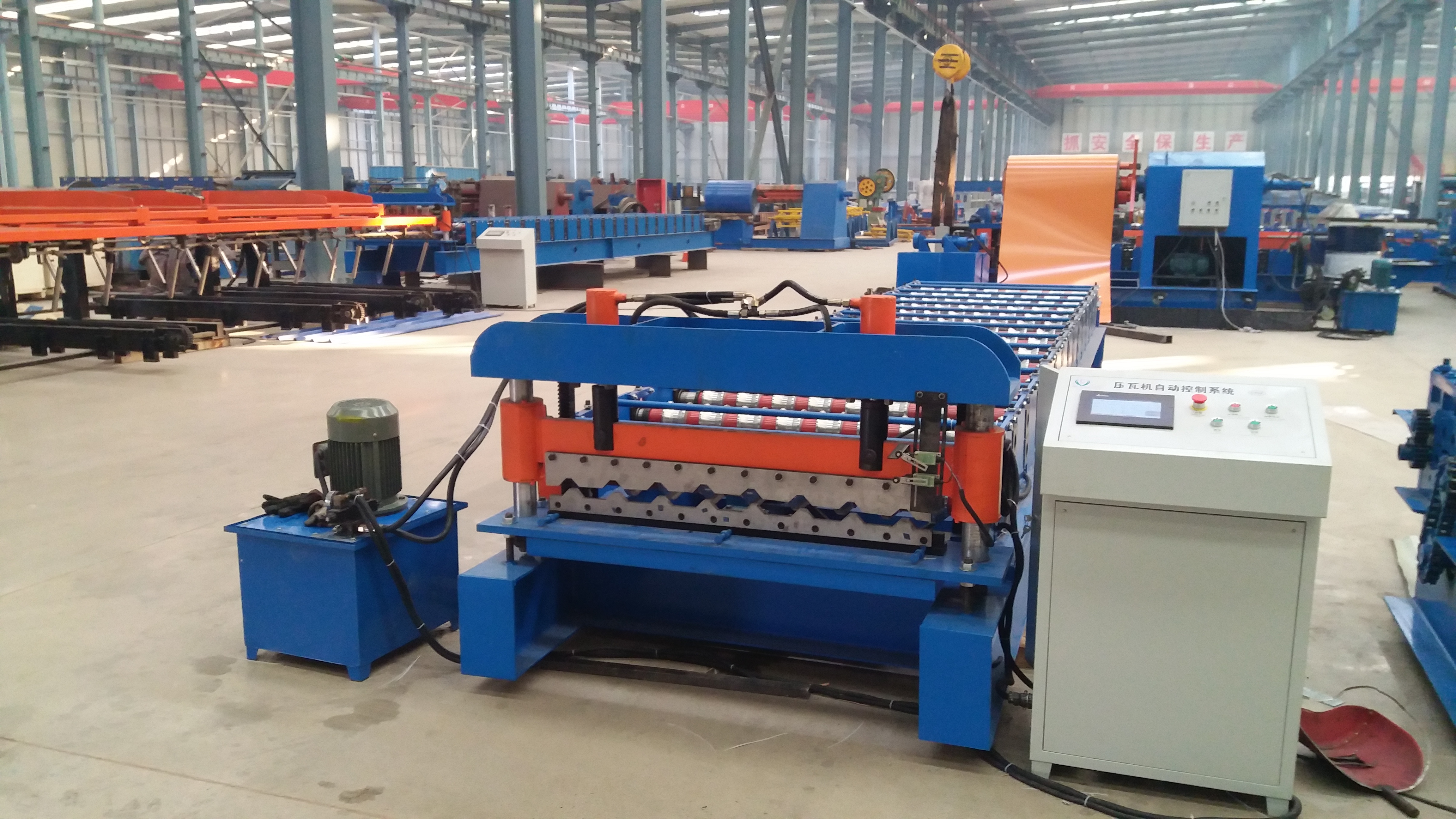

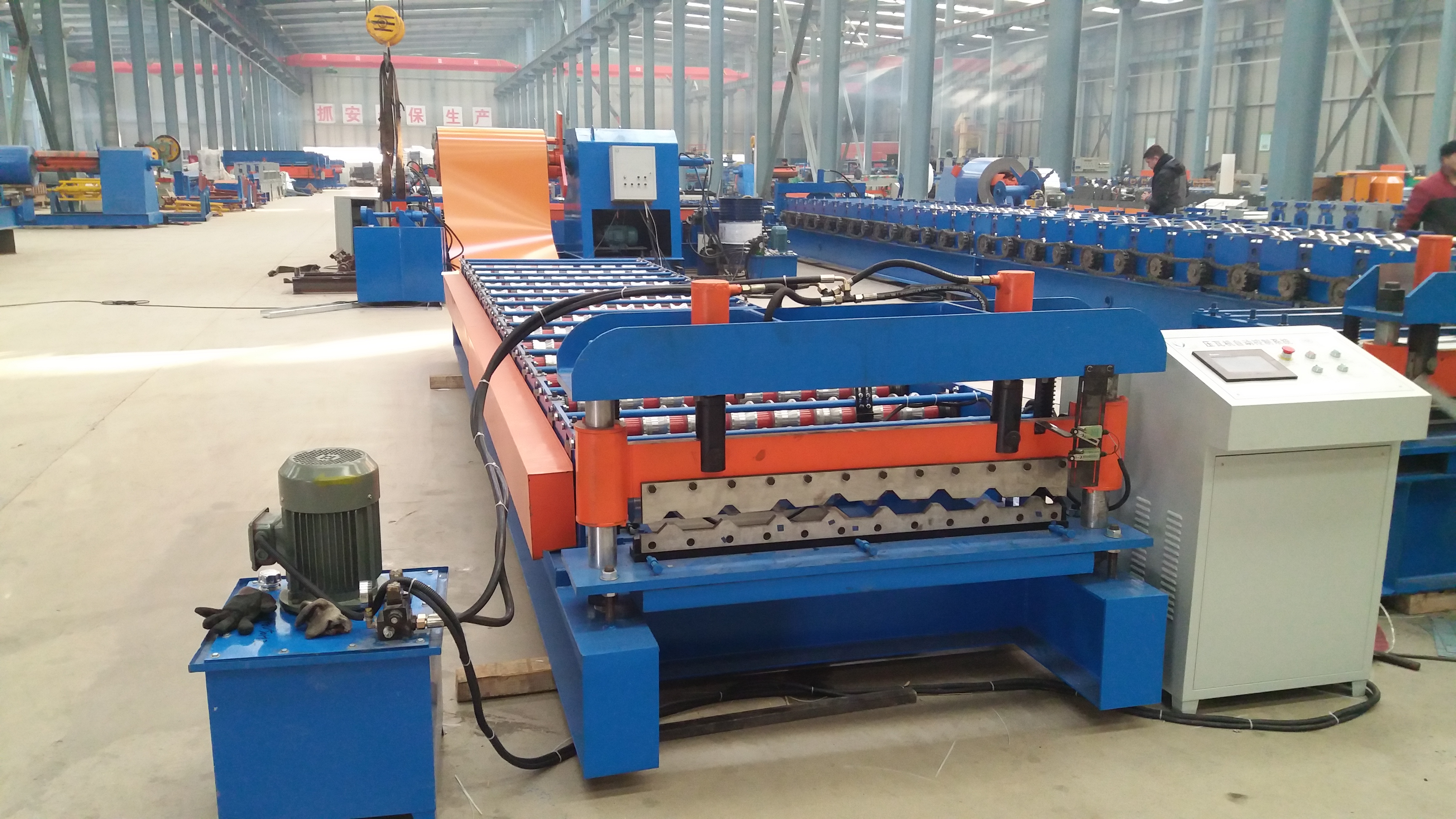

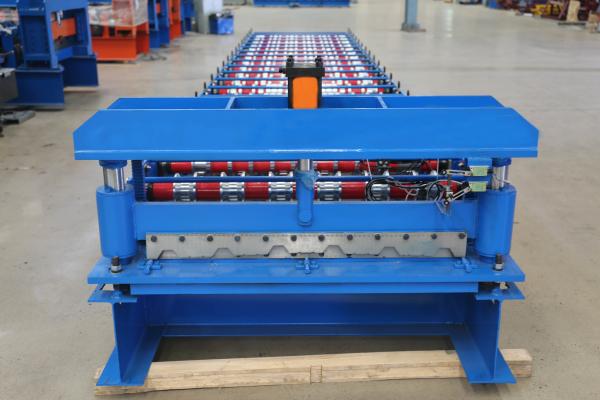

Machine pictures
Advantages:
♥ As a manufacturer we are specialized in all kinds of roll forming machines.
♥ Rich experience of 20 years to make roll forming machine.
♥ Good experience for export more than 40 countries.
♥ Provide best price,good quality and fast delivery.
Production Detail Description
This machine is perfectly combined two different model machines together, this can save the
space and alsois easy to operate. The two models are chosen according to customers’ need.It
consists of feeding platform, main molding machine, shearing mechanism, hydraulic station,
computer control cabinet, high precision counter and so on.
A. General
| Suitable Material | Q235 or equivalent |
| Material Thickness | 0.25-0.8 mm |
| Material Width | 1250, as per the drawing |
| Dimension | About8.9*1.3*1.1m(L*W*H) , as per the drawing |
| Working Space | About 15.9*2.8m(L*W) , as per the drawing |
| Length of the Sheet | You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting | Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 20, according to the drawing. |
| Shaft Material | Φ75 mm, high grade 45# steel. |
| Treating process: tempering- finish turning, high rigidity, hard to deform. |
| Cutting Blade Material | Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
| well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
| Frequency Converter | DeltaVFD- M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| Length Measurement Device | Omron, made in Japan. |
| It features with high accuracy and stability. |
This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate
4 package and loadng
A.Need one 40ft container.
B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered
with anti-rust oil.
C.Spare parts in carton box.
